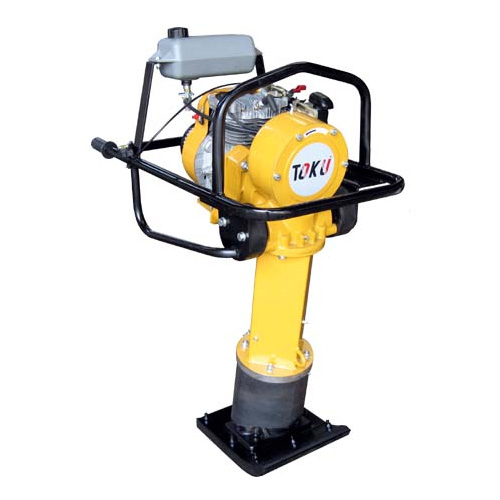

| Tamping Rammer |
| |
The Objective of Compaction:
• Rockfill
• Clay Soil
• Sand & Gravel
Application:
• Backfilling Work
• Embankment
• Road Repairing Work
• General Construction Work
Features: |
| • |
Tamping plate is made of High Quality Steel for maximum durability. |
| • |
High performance. |
| • |
360mm (L) × 300mm (W) plate size designed for well balance and better tamping efficiency. |
| • |
Specially designed handle with anti vibration rubber mounted to reduce operator fatigue during operation. |
| • |
Direct drive from engine, powerful, stable in usage. |
|
| |
| Model |
TK-80D |
TK-72B |
| Engine |
Robin EY-20D or
Robin EH-12D |
Robin EY-20D /
Robin EH-12D /
Honda GX-160 |
| Max. Output (HP/rpm) |
5.0/4000 or
3.8/4000 |
5.0/4000 /
3.8/4000 /
5.0/4000 |
| Fuel |
Gasoline |
Gasoline |
| Shoe Size L × W (mm) |
330 x 280 |
330 x 280 |
| Blow/Min (vmp) |
550-600 |
630-700 |
| Fuel Tank Capacity (liters) |
2.0 |
2.0 |
| Fuel Consumption (liters/hr) |
1.4 |
1.1 |
| Travel Speed (m/min) |
9-10 |
9-11 |
| Impact Force (kgf) |
1200-1400 |
1400-1600 |
| Lubricating System |
Grease Type |
Oil Bath |
| Weight (kg) |
80 |
73 |
| Dimension L × W × H (mm) |
850 x 420 x 1070 |
760 x 430 x 940 |
|
