Concrete Trowelling Machine
Power trowel is designed to smooth the concrete floor. Small holes and slight high spots can be levelled off by the action of the trowel.

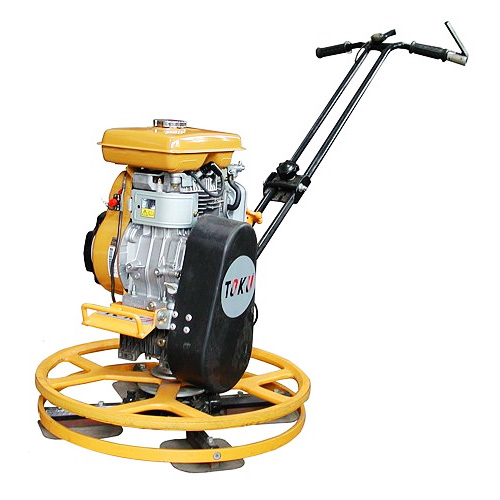

TKT-24A suitable to use as final screed and refurbishment works. Mostly use in working through doorways in finished buildings. Also can as Side Corner Power Trowel.

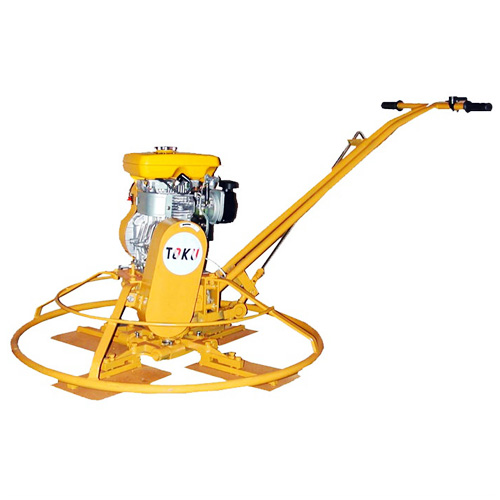

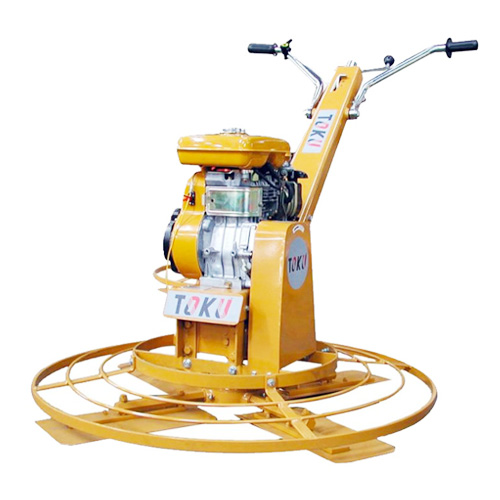

TKPT-36A and TKT-40A use as common applications such as factories, ware houses and all other general flooring contracting work.
Trowel blades are the first component of a power trowel that will require replacement. Floating Pans/Floating Blades removes humps (high spots) and fills in valleys (low spots). Floating Pans/Floating Blades use to produces a slab that is dense, durable and smooth. In many instances contractors will burnish the slab causing it to have a mirror-like appearance. |
| |
| Model |
TKPT-36A |
TKT-24A |
TKT-40A |
Trowel Diameter
(mm) |
910 |
600 |
1016 |
Blade Dimensions
(mm) |
343 x 205 |
175 x 152 |
190 x 411 |
Trowel Speed
(rpm) |
50-100 |
50-100 |
50-100 |
| Engine |
Robine Engine
EY-20D
or
Honda GX-160 |
Robine Engine
EY-20D
or
Honda GX-160 |
Robine Engine
EY-20D
or
Honda GX-160 |
| Engine Type |
Air-cooled
Gasoline |
Air-cooled
Gasoline |
Air-cooled
Gasoline |
Max. Output
(hp/rpm) |
5/4000 |
5/4000 |
7.5/4000 or
9/4000 |
| Starting System |
Recoil |
Recoil |
Recoil |
| Weight (kg) |
78 |
60 |
95 |
Dimension
(L x W x H) (mm) |
1730 x 1010 x 810 |
1370 x 650 x 930 |
1600 x 1055 x 865 |
|
| |

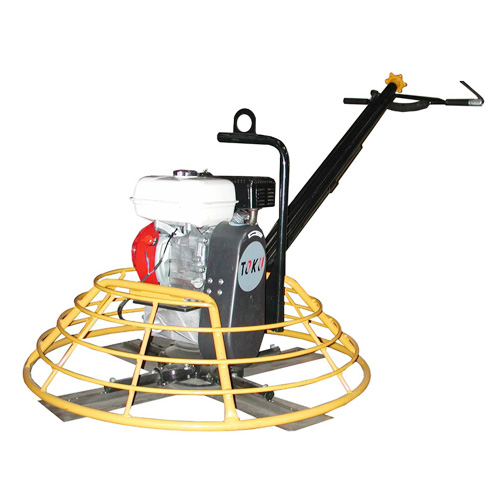

| VPT series is another designed for operator comfort and safety. |
| • |
Longer handles gives greater leverage. They are adjustable to fit the operator more comfortable and absorb trowel torque. |
| • |
The trowel is balanced regard to engine location for excellent performance and reduce operator fatigue. |
| • |
Heavier handle and strong guard ring give extra safety. |
| • |
The Deadman Switch on the handle ensures operator safety. |
|
| |
| Model |
VPT-900 |
| Trowel Diameter (mm) |
900 |
| Blade Dimensions (mm) |
350 x 150 |
| Trowel Speed (rpm) |
130 |
| Engine |
Robine Engine EY-20D or
Honda GX-160 or
Equivalent |
| Engine Type |
Air-cooled Gasoline |
| Rated Output (hp/rpm) |
9/4000 |
| Starting System |
Recoil |
| Weight (kg) |
110 |
| Dimension (L x W x H) (mm) |
2100 x 1200 x 1000 |
|
| |
