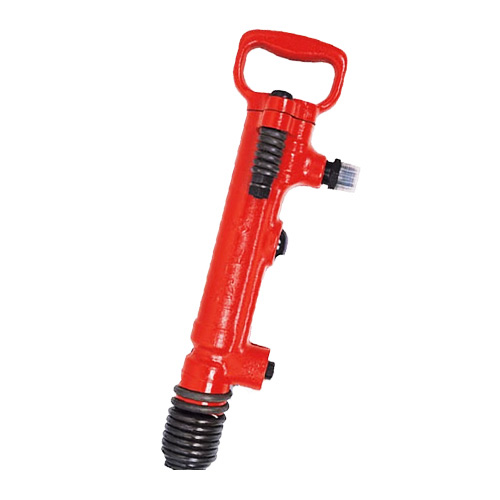

| Air Concrete Breaker |
| |
| TCA-7 |
| |
Features:
• Light weight & high power.
• Automatic push throttle valve.
• Few parts for easy maintenance.
• Durable forged body.
• With chisel bush for long time. |
| |
| Model |
TCA-7 |
| Piston Diameter |
35 mm |
| Piston Stroke |
120 mm |
| Blow Per Minutes |
1250 bpm |
| Net Weight |
7.2 kg |
| Overall Length |
465 mm |
|
| |

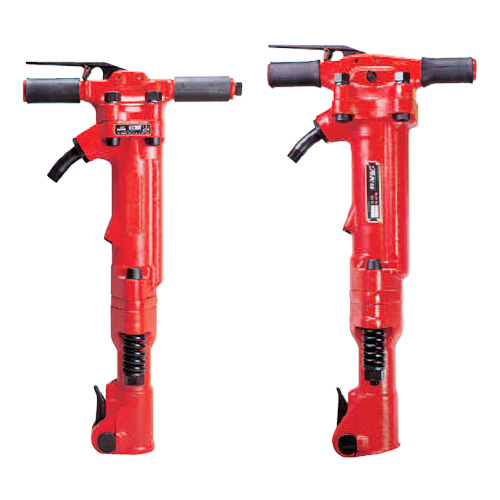

| TPB-40, TPB-60, TPB-73, TPB-90 |
| |
| Features: |
| • |
High technology to front head design provides excellent durability and low maintenance cost. |
| • |
Alloy steel forgings provide maximum durability. |
| • |
For bolt back head design stands up in rugged use. |
| • |
Latch type forged retainer for quick change. |
| • |
Noise reduction muffler is optionally available. |
|
| |
| Model |
TPB-40 |
TPB-60 |
| CHUCK SIZE inch |
1x4-1/4 |
1-1/8x6 or 1-1/4x6 |
| Stroke inch(mm) |
5-3/4(146) |
4(100) |
| BORE inch(mm) |
1-3(44) |
2-1/4(57.15) |
| IMPACT RATE B.P.M. |
1,100 |
1,400 |
| WEIGHT lb(kg) |
40(18) |
66(30) |
| LENGTH inch(mm) |
26(660) |
25-3/8(645) |
| AIR CONSUMPTION CFM(m³/min) |
50(1.3) |
70(2) |
| AIR INLET inch |
1/2 NPT |
3/4 NPT |
| HOSE SIZE inch(mm) |
3/4(19) |
3/4(19) |
|
| |
| Model |
TPB-73 |
TPB-90 |
| CHUCK SIZE inch |
1-1/8x6 or 1-1/4x6 |
1-1/8x6 or 1-1/4x6 |
| Stroke inch(mm) |
5-5/16(144) |
6(152) |
| BORE inch(mm) |
2-1/4(57.15) |
2-5/8(66.67) |
| IMPACT RATE B.P.M. |
1,200 |
1,250 |
| WEIGHT lb(kg) |
70(31) |
92.4(42) |
| LENGTH inch(mm) |
27-3/16(690) |
28-1/2(723) |
| AIR CONSUMPTION CFM(m³/min) |
63(1.8) |
77(2.2) |
| AIR INLET inch |
3/4 NPT |
3/4 NPT |
| HOSE SIZE inch(mm) |
3/4(19) |
3/4(19) |
|
